What Is a Collimator & Why It Matters for Your Business

Acollimator(also called optical collimator, parallel light tube, collimating lens, or beam collimator) is a precision optical device that turns divergent light, laser, X-ray, or particle beams into highly parallel, directional, and controllable beams. It acts as the “beam stabilizer” and “precision navigator” in optical systems, imaging equipment, laser processing, and medical devices—directly determining accuracy, efficiency, and product stability.

In short: Without a reliable collimator, your optical system cannot achieve consistent precision, no matter how good other components are.

Why Global Buyers Trust Quality Collimators

For manufacturers, engineers, and importers, collimators solve four core pain points:

1. Poor Compatibility & Integration Hassles
Off-the-shelf units often fail to fit your wavelength, interface, power, or environment—wasting time on retrofits.
2. Inconsistent Accuracy & Rejection Rates
In calibration, testing, alignment, and laser machining, unstable beams cause dimensional errors, defective products, and rework costs.
3. Beam Divergence & Energy Loss
Uncontrolled scattering raises power consumption, reduces working distance, and weakens output efficiency. A stable collimator locks beam direction to minimize loss.
4. Short Lifespan & High After-Sales Cost
Low-grade lenses and structures degrade quickly under high power or harsh conditions, driving frequent replacements.

How a Collimator Works (Simple, No Jargon)

A standard collimator uses precision lenses, apertures, and structural design:

– Places the light source at the focal plane of the objective lens
– Outputs strictly parallel light to simulate “infinite targets”
– Filters stray light and scattered radiation
– Delivers a clean, stable, low-divergence beam

This makes it indispensable for calibration, alignment, measurement, imaging, laser coupling, and beam shaping.

Key Types & Where They Are Used

We classify collimators by application to help you match quickly:

1. Fiber Collimator
For fiber communications, laser testing, sensing, and free-space optical coupling.

2. Optical Collimator / Parallel Light Tube
For laboratory calibration, telescope/microscope assembly, optical instrument alignment, and precision measurement.

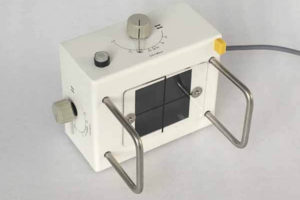

3. X-Ray / Radiation Collimator (Beam Limiter)
For medical imaging, security inspection, and industrial non-destructive testing (NDT), limiting radiation field and improving image clarity.

4. Laser Collimator (QBH, fiber-mounted, water-cooled)
For laser cutting, welding, marking, cleaning, and high-power industrial systems.
Must-Know Selection Criteria (Avoid Wrong Purchases)

To choose the right collimator for your project, confirm 5 parameters:

1.Wavelength range (UV, visible, NIR, mid-infrared, X-ray)
2. Aperture & focal length(determines beam size and working distance)
3. Beam divergence & collimation accuracy (core precision index)
4. Interface & power (QBH, SM/MM fiber, high-power water-cooled)
5. Environment** (temperature, vibration, dustproof, vacuum compatibility)

Share your application scenario, and we provide a free tailored recommendation.

Our Advantages: Stable, Cost-Effective, On-Time

We serve global B2B buyers with industrial-grade collimators built for performance and reliability:
✅ High precision & low divergence** – stable long-term performance
✅ Wide compatibility** – standard & custom designs for diverse systems
✅ Durable structure** – anti-vibration, temperature-stable, long service life
✅ Flexible OEM/ODM** – logo, labeling, packaging, technical docs
✅ Fast lead time & strict QC** – on-time delivery with full inspection
✅ Responsive support** – pre-sales selection, installation, calibration, after-sales

If you’re struggling with:

Unclear which collimator fits your machine
Need stable quality at competitive cost
Want fast delivery for mass production
Require custom design for special applications

Contact us today with your parameters: wavelength, power, interface, accuracy, and usage environment. We will send a free datasheet, quotation, and sample support plan to help you upgrade stability, reduce costs, and win more orders.

Author:X Ray Collimator
