NK102 Manual X-Ray Collimator – Ideal Beam Limiter for Portable & Mobile X-Ray Systems

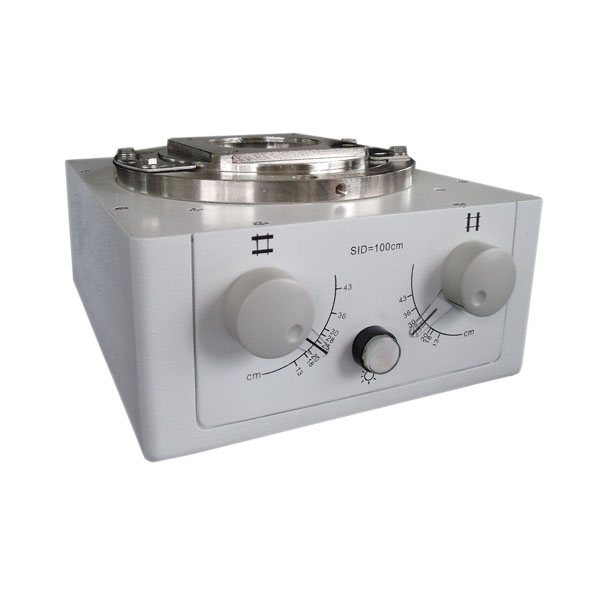

The Newheek NK102 collimator is a widely used manual beam limiting device designed for diagnostic X‑ray equipment up to 125 kV. It provides stable and precise control over the X‑ray irradiation field, helping to improve image quality, reduce unnecessary radiation exposure, and support safe daily radiography work. It is widely applied in clinics, emergency rooms, and mobile diagnostic scenarios.
Key Applications & Compatible Equipment
The NK102 collimator is highly adaptable and can be installed on many types of X‑ray machines:
- Portable X‑ray machines for bedside and emergency radiography
- Mobile X‑ray units for ward rounds and outdoor diagnosis
- Standard stationary radiography systems in clinics and hospitals
- All types of diagnostic X‑ray tubes with working voltage ≤ 125 kV
This wide compatibility makes the NK102 one of the most practical collimator models for equipment maintenance, replacement, and new machine assembly.
Main Technical Features
- Max irradiation field: 440mm × 440mm (SID=100cm)
- Light field luminance: >160lux, light‑field ratio >3:1
- Lamp: 24V/100W, auto‑off after 30 seconds
- Focus‑mount distance: 60mm (customizable on request)
- Shielding structure: Single‑layer lead leaves
- Fixed filtration: 1mm Al at 75kV
- Operation: Manual adjustment with knob pointer scale
- Power supply: AC 24V
- Standard SID measuring tape for convenient distance positioning
Why Choose Newheek NK102 Collimator?
- Manual operation is simple and reliable, no complex circuit control required
- Stable light field alignment ensures accurate positioning before exposure
- Effective beam restriction reduces scatter radiation and improves image contrast
- Compact and durable structure for long‑term use in various environments
- Wide compatibility with most mainstream X‑ray tubes and equipment models
- Factory direct supply with technical support and short delivery time
The NK102 manual collimator combines practical design, stable performance, and strong versatility. It is an ideal beam limiting solution for portable, mobile, and standard stationary X‑ray systems, helping clinics and hospitals achieve safer and more efficient radiography.
