NK102 Collimator: The Key to Optimizing 5KW Mobile DR & Flat Panel Detector Workflows

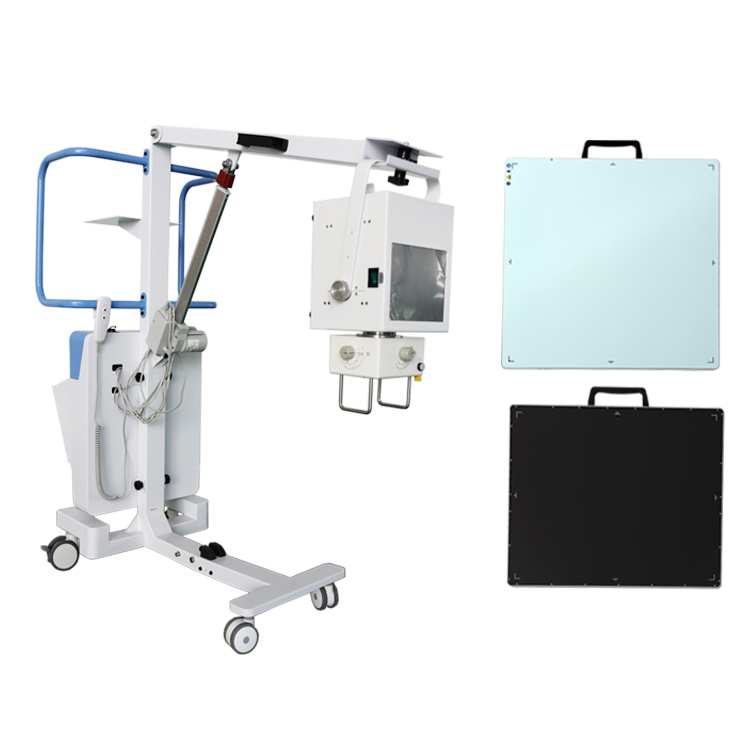

When disaster response, emergency care, or bedside radiography demands fast, reliable imaging, a 5KW mobile DR system paired with a flat panel detector (FPD) is often the first line of care. But even the most advanced FPD and portable generator cannot deliver diagnostic-grade results without precise beam control—and that’s exactly where the NK102 X-ray collimator becomes indispensable. Designed for mobile radiography setups, it works hand-in-hand with your flat panel detector to cut scatter radiation, improve contrast, and ensure every image meets clinical standards.

For mobile DR systems operating in uncontrolled environments, scattered radiation is one of the biggest threats to image quality. Unlike fixed radiography rooms with dedicated shielding, portable setups rely on the collimator to limit the X-ray beam to only the area of interest. The NK102 collimator does this perfectly: with a maximum irradiation field of 440×440mm at 100cm SID, it matches the full field of view of most 17×17-inch flat panel detectors, eliminating off-target exposure that would otherwise fog FPD images. Its bright, >160 lux light field ensures quick, accurate alignment, reducing retakes in fast-paced disaster response scenarios where every second counts.

Patient safety is equally critical in mobile settings, and the NK102 collimator directly supports low-dose imaging with your flat panel detector. The 1mm Al inherent filtration at 75kV filters out low-energy, non-contributing X-rays, cutting unnecessary patient exposure without sacrificing detail. This is especially vital for vulnerable patients, where minimizing radiation dose while capturing clear FPD images is a top priority. The collimator’s compact, durable design also makes it ideal for the rugged use of 5KW mobile DR systems, ensuring consistent performance in the field, ER, or at the bedside.

Beyond image quality, the NK102 collimator streamlines workflows for teams using flat panel detectors. The manual, knob-driven controls let operators quickly adjust the beam size to match different body parts, from chest to extremity exams. Its universal compatibility with X-ray machines up to 125kV means it works seamlessly with most 5KW mobile generators and flat panel detectors, with no complex modifications required. This plug-and-play reliability is essential for disaster response teams that need to set up and start imaging in minutes.

In short, the NK102 collimator is far more than an accessory—it’s a core component that unlocks the full potential of your 5KW mobile DR and flat panel detector setup. By reducing scatter, improving contrast, and enabling low-dose imaging, it ensures you can deliver clear, diagnostic-grade results wherever care is needed most.
