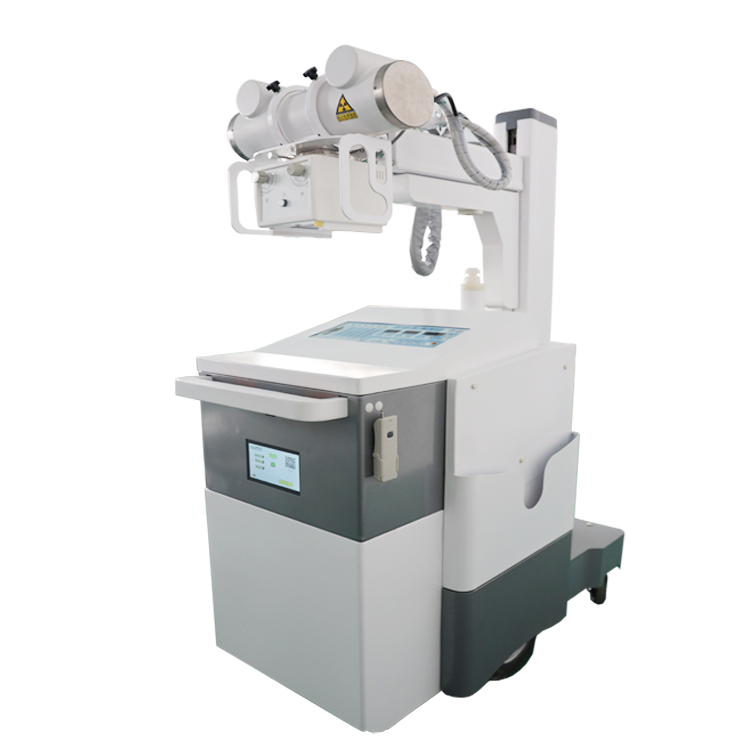

Mobile X-Ray Machine: The Key Role of the Collimator in Clinical Imaging

1. Core Function: Precision Control of the X-Ray Beam

• Targeted Exposure: The collimator uses adjustable lead shutters to restrict the radiation field, ensuring only the body part being examined receives X-rays. This eliminates unnecessary exposure to healthy surrounding tissues—a key requirement for patient safety and regulatory compliance.
• Visual Alignment: A built-in light field projects the intended X-ray beam onto the patient, letting technicians quickly and accurately position the tube head before exposure. This is especially critical in mobile settings where patients may be bedridden or in hard-to-reach positions.
• Scatter Reduction: By narrowing the beam, the collimator minimizes scattered radiation, which would otherwise blur the image. This directly boosts contrast and clarity, producing sharp, reliable single images for clinical diagnosis.

2. Synergy with the Mobile X-Ray System

• Electric Assist Operation: The machine’s motorized forward/backward movement lets technicians easily position the unit at the bedside, while the collimator’s light field provides instant feedback for fine-tuning alignment.
• High-Frequency Generator Stability: The high-frequency high-voltage generator, with closed-loop tube kV control, delivers consistent, stable output. When paired with the collimator’s precise beam shaping, this results in reliable, repeatable images every time.
• Safety & Convenience: The collimator works alongside built-in protections like exposure time control, filament preheating, and automatic fault alarms. Together, they ensure the machine operates safely even in busy, fast-paced environments.
• Flexible Power & Mobility: With automatic power supply voltage adjustment and a retractable power cable mechanism, the unit adapts to different clinical spaces. The collimator’s LED light field remains bright and visible regardless of ambient lighting conditions, making positioning easier.

3. Clinical Benefits for Every Setting

1. Enhanced Patient Safety: By limiting the radiation field, the collimator significantly reduces the effective dose received by patients, particularly critical for vulnerable populations like children and pregnant women.
2. Improved Diagnostic Confidence: Clear, high-contrast images produced with proper collimation help radiologists identify abnormalities more accurately, reducing the need for repeat exposures.
3. Streamlined Workflow: The collimator’s intuitive light field and easy adjustment speed up patient setup, allowing technicians to perform more exams efficiently without compromising quality.

4. Conclusion: Why the Collimator Matters
