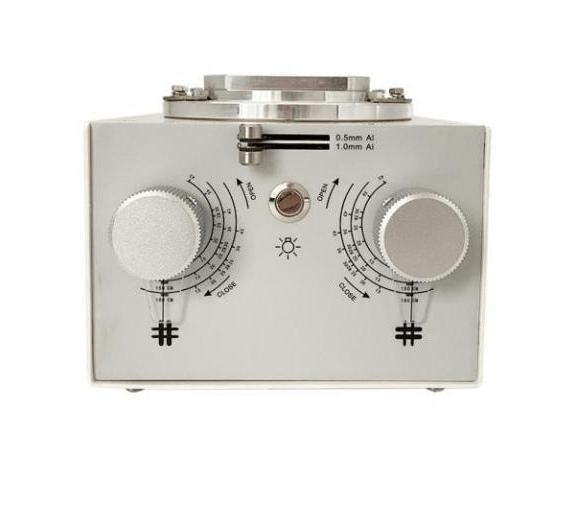

NK-R102NC  Manual X-ray Collimator

Our manual X-ray collimator (X-ray beam limiter) is an essential accessory for diagnostic X-ray machines. It adopts manual lead shutter structure to limit the X-ray beam range, reduce scattered rays and improve image quality. The built-in light source simulates the X-ray field to help operators accurately position before exposure.

– Function: Restrict X-ray beam, radiation protection, light field localization
– Type: Manual adjustment collimator
– Application: Medical diagnostic radiography

– ✅ Light Field Positioning：Visible light preview X-ray exposure range
– ✅ 125kVp Rated Voltage：Suitable for diagnostic X-ray radiography
– ✅ Adjustable Lead Shutters：Customize radiation field size
– ✅ Easy Installation：Directly mounted on X-ray tube

Product Application of X-ray Beam Limiter

Mainly used for mobile X-ray machines, mainly matching X-ray tubes with the highest tube voltage of  150KV Use

Main Parameters

Maximum working voltage of the X-ray tube: 150KV
Maximum radiation field (SID = 65cm): 35cm × 35cm
Minimum radiation field (SID = 100cm): 5cm × 5cm
Powersupply: 12-24V AC, DC 1A, 2A
Illuminance (SID = 100cm): > 160lx
Lightsource timing: 35s ± 5s(adjustable from 30sto 60s)
Lighting source: LED: 10W × 3V
Inherent filtration (70KV): 1.5mm AL
Built-in additional filter plate (70KV): 0/0.5/1.0/1.5mm AL
Output window glass plate filtration (70KV): 0.2mm AL
Lead door control method: Manual continuous adjustable
Focusto installation plane distance: 55mm
Beamshaperrotation locking mechanism: Locked by flange
plate and press plate
Net weight kg: 6.5 ± 0.5kg
SID ruler(2m): 2m tape measure
Overall dimensions(length × width × height) mm: 245 × 175× 150

Product Diagram

Our Service
Original manufacturer of x- ray machine accessories for more than 16 years.
√ Customers could find all kinds of x-ray machine parts here.
√ Offer on line technological support.
√ Promise super product quality with best price and service.
√ Support the third part inspection before delivery.
√ Ensure the shortest delivery time.

Contact us
Email : newheekcn@163.com

Hot Line: +86 19015366638

FAQ
1. What is NK102 collimator application?
NK102 collimator is mainly used on mobile x ray and stationary x ray with x ray tube 125kv.
2. Is it manual?
Yes, it is the manual collimator.
3. what kind of x ray tube it can match?
It can match most of famous brand x ray tube and models.
4. what is it max irradiation?
Its max irradiation field is 440mmx440mm.
