Collimator: Precise Beam Control for Enhanced Safety & Sharper Imaging

Collimator: Precise Beam Control, Ultimate Safety & Clarity‌

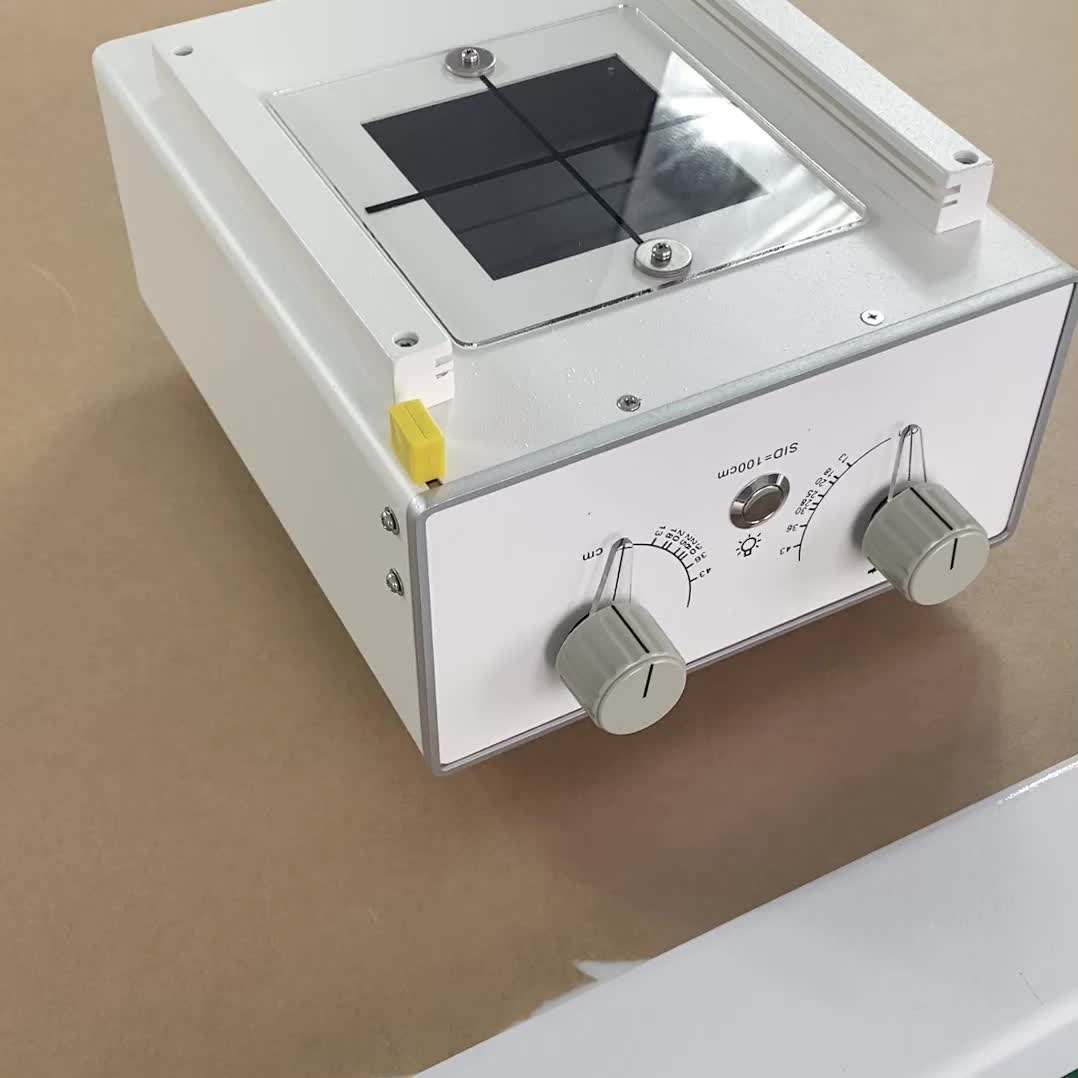

In radiographic equipment such as DR systems and X-ray machines, there is a seemingly modest yet critically essential core component — the ‌collimator‌ (also referred to as a beam limiting device). Mounted at the output window of the X-ray tube, it silently governs every characteristic of the X-ray beam, playing a pivotal role in ensuring examination safety and image quality.

Internally, it is constructed with radiation-shielding blades made of high-density metals such as lead and tungsten, complemented by an integrated optical positioning light system.

The X-ray collimator is a vital supporting component across a wide range of imaging systems — including digital radiography (DR) systems, mobile X-ray machines, C-arms, and gastrointestinal fluoroscopy units. It directly determines radiation field accuracy, radiation protection performance, and overall imaging quality, making it an indispensable high-performance component for radiology departments, health screening centers, emergency rooms, and operating room imaging setups.

‌Core Functions‌
‌Radiation Control‌ — Ensuring maximum safety for both patients and medical staff
‌Image Quality Enhancement‌ — Delivering sharper, higher-clarity diagnostic images
‌Precise Positioning‌ — Streamlining workflow and improving examination efficiency
‌Product Features‌
‌Precise Adjustment‌ — Highly accurate control of irradiation field size, with no light leakage or beam offset
‌User-Friendly Operation‌ — Supports both manual and electric adjustment modes for smooth, intuitive operation
‌Clear Positioning‌ — Uniform light intensity and clearly visible positioning lines for accurate patient positioning
‌Reliable Shielding‌ — Superior radiation protection with internal lead blades, minimizing radiation leakage
‌Stable & Durable‌ — Resistant to deformation and jamming after long-term use, ideal for high-volume examination environments

Author:X Ray Collimator
