Working principle of led indicator light

Led indicator light control system, x ray collimator is an important component of X-ray machine. Two sets of adjustable screen lead plates are used to define the X-ray exposure field in X-ray emission.Lies in its features, including PC and single chip microcomputer system, camera, motor drive circuit, two dc motors, camera installed in the led indicator light out of the mouth on the shell of light, and make your camera vision, camera to PC, PC output instruction transmitted by RS232 serial port to the single-chip microcomputer system, single chip microcomputer system after processing the data, the output through the motor drive circuit to control the led indicator light, and the longitudinal and transverse two dc motor are, inversion, two groups of driven by two dc motor regulation line lead plate movement.
led indicator light
The led indicator light is digitized and the control accuracy is improved. It can be operated remotely and the work of doctors can be simplified to improve work efficiency.And the circuit volume is small, achieved the goal of saving.
The led indicator light is used to block X-ray scattering, reduce X-ray injury to patients and improve imaging quality. X – ray diagnostic machine is an indispensable part.

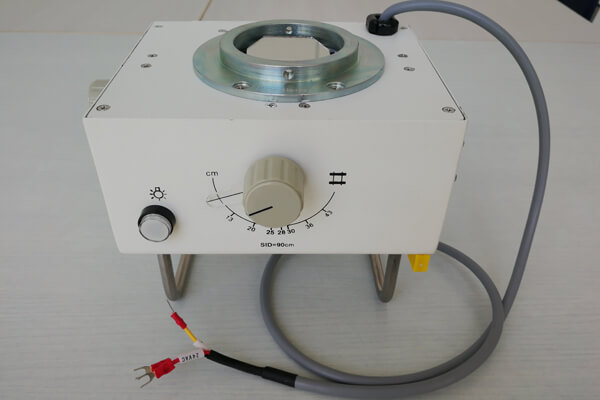

Newheek manual led indicator light through manual knob to adjust the blade size of the window, which is easy to operate and can reduce the working pressure of operators.
Our led indicator light can meet your different purchasing needs.
